Processing & Converter
|
|

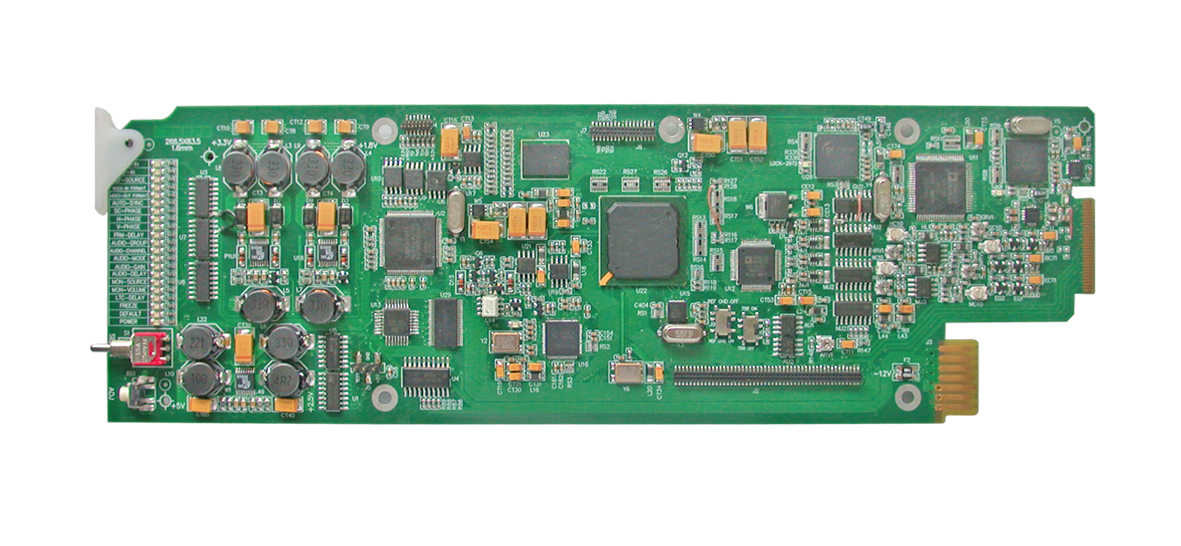

ENC-2102 is a SDI-to-analog video converter with frame sync. It is used in i-MOD platform. The module converts SDI input signal to CVBS, Y/C, YUV and RGB outputs. Two additional SDI outputs are provided for loop-thru function. Equalizing is up to 656 ft (200m). Genlock to reference input and continuous H/V/subcarrier phase adjustment are available. The ENC-2102 can be controlled locally by means of an intuitive card-edge interface or remotely using i-MOD platform control software IM-MASTER. Digital-to-Analog Video Converter with Frame Sync.
|
|
|
| Features |
Specifications |
Download |
|
- NTSC/PAL compliant - 10-bit processing - 2 additional SDI outputs, loop-thru supported - Output signals supported include CVBS, Y/C, YUV and RGB - 2 reference video inputs, hi-z loop-thru supported - Output frame sync and H/V/subcarrier phase adjustment available - Equalizing up to 656 ft (200 m) - Non-volatile memory - Hot-swappable - IM-MASTER control supported
| DIGITAL VIDEO INPUT |
|
| Signal Format |
SMPTE 259M, 270 Mbps, 4:2:2, 10 bits, 525/625 component |
| Connector |
BNC (×1) |
| Impedance |
75 Ω |
| Return Loss |
>15 dB @ 270 MHz |
| Cable EQ |
<656 ft (200 m), 270 Mbps, |
| |
Belden1694A cable or equivalent |
| |
|
| REF VIDEO INPUT |
|
| Signal Format |
CVBS |
| Standards |
NTSC, PAL |
| Connector |
BNC (×2), hi-z loop-thru |
| |
|
| ANALOG VIDEO OUTPUT |
|
| Signal Format |
CVBS, Y/C, YUV, RGB |
| Standards |
NTSC, PAL |
| Quantization |
10 bits |
| Connector |
BNC (×4) |
| Impedance |
75 Ω |
| Return Loss |
>40 dB @ 5.5 MHz |
| Amplitude |
1.0 Vp-p ±3% |
| Frequency Response |
±0.1 dB @ 6 MHz |
| Differential Gain |
≤0.5% |
| Differential Phase |
≤0.5 |
| Chr/Lum Delay Diff |
<5 ns |
| S/N Ratio |
>70 dB @ 6 MHz |
| |
|
| DIGITAL VIDEO OUTPUT |
|
| Signal Format |
SMPTE 259M-C, 270 Mbps, 4:2:2, 10 bits |
| Connector |
BNC (×2) |
| Impedance |
75 Ω |
| Return Loss |
>15 dB @ 270 MHz |
| Amplitude |
800 mVp-p ±10% |
| Jitter |
<0.2 UI |
| Rise/Fall Time |
400 ~ 1500 ps, 20% ~ 80% of amplitude |
| Overshoot |
<10% of amplitude |
| H Adjustment Precision |
±1/2H |
| V Adjustment Precision |
±1/2F |
| |
|
| ELECTRICAL |
|
| Power |
4.5 W |
| |
|
| ENVIRONMENTAL |
|
| Operating Temperature |
32° ~ 104° F (0° ~ 40° C) |
| Relative Humidity |
10% ~ 90% |
|
|
